GBM-20 Self-propelled bevelling machine
|
|
|
Passed USA AQA certification
|
Quality management system ISO 9001:2008
|
GBM-20 Selp-propelled Plate Bevelling Machine Introductions:
The bevel sheet machine GBM-20 mills according to a special principle whereby the cutter “bits” itself into the material and sides the material off from the sheet.
The turning movement from the cutter takes care of the material transportation through the machine.Because of this is a solid feed possible of 1.8 meters per minute, the revolution speed is the same as the feed.
GBM-20 Self-propelled bevelling machine Technical Parameters:
|
Power Supply
|
AC 380V 50Hz
|
|
Motor Rate Speed
|
1450PRM
|
|
Motor Power
|
3.0Kw
|
|
Minimum Plate Thickness
|
9mm
|
|
Maximum Plate Thickness
|
50mm
|
|
Minimum Plate Width
|
115mm
|
|
Single Run Bevelling Width
|
16mm
|
|
Can be finished Bevel Width (Second)
|
30mm
|
|
Bevelling Performs Speed
|
≥1.5m/min
|
|
Bevelling or Milling Angle
|
25° to 45°
|
|
Net Weight of The Bevelling Machine
|
450Kg
|
|
G.W
|
530Kg
|
GBM-20 Type Portable, Self-propelled Plate Bevelling Machine Features:
1. This machine adopts big power motors to drive, steady operation at a low speed, dolly base, automatic feed along the edge of armor plate, adjustable height, can be used for beveling of big sheet materials.
2. Machine body fixed facilitates for beveling of small sheets.
3. Cold beveling, free deformation of sheet materials, guarantee the quality of welding.
4. Angle of machine head can be adjusted, the angles of beveling: 25° to 45°.
5. The Plate bevelling machine is made in china GIRET factory.
GBM-20 Type Portable, Self-propelled Plate Bevelling Machine Complete Bevel Drawing:
GBM-20 Type Portable, Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):
|
Tensile strength
|
CARBON STEEL Kg/㎡
|
Tensile strength
|
STAINLESS STEEL Kg/㎡
|
|
40
|
50
|
60
|
50
|
60
|
70
|
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
|
25°
|
16
|
14.5
|
14
|
12.5
|
12
|
11
|
25°
|
8
|
7
|
6
|
5.5
|
5
|
4.5
|
|
30°
|
16
|
14
|
14
|
12
|
12
|
10
|
30°
|
8
|
6.5
|
6
|
5.2
|
5
|
4.2
|
|
35°
|
16
|
13
|
14
|
11.5
|
12
|
9.5
|
35°
|
8
|
6
|
6
|
5
|
5
|
4
|
|
40°
|
16
|
12
|
14
|
11
|
12
|
9
|
40°
|
8
|
5.5
|
6
|
4.5
|
5
|
3.8
|
|
45°
|
16
|
11
|
14
|
10
|
12
|
8.5
|
45°
|
8
|
5
|
6
|
4
|
5
|
3.5
|
GBM-20 Type Portable, Self-propelled Plate Bevelling Machine Package Standard:
|
|
|
|
|
Bevell Cutter
|
Tear Down Cutter
|
Hex Wrench
|
Hole Wrench
|
|
|
|
|
|
Open end Wrench
|
Certificate
|
Operation Manual
|
Products Manual
|

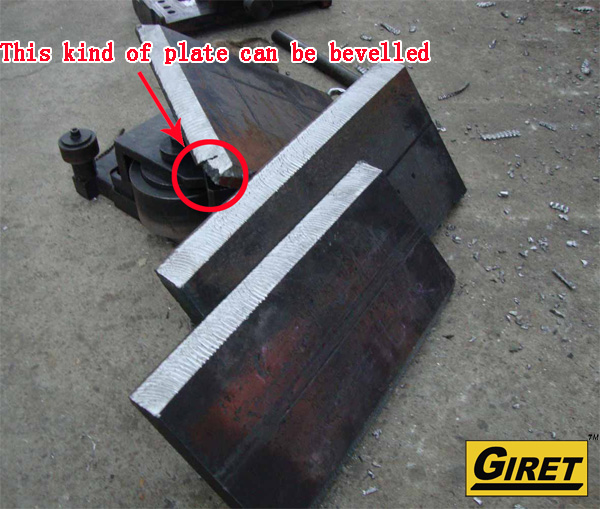

GMB-20 Self-propelled bevelling machine Processing Case:
