The GBM-16C-R Self-propelled Plate Bevelling Machine Instroductions:
This type machine can complete the work automatically, and just flip the machine after beveling up side, it will process the down side directly. The beveling speed more than 1.2m/min, plate thickness can arrive 30mm, It is also named as X-type Plate Bevelling Machine, Edge Planer Machine and Plate Chamfering Machine.
GBM-16C-R Plate Self-propelled Plate Bevelling Machine Use of Scope:
It is widely used in aerospace, petrochemical, pressure vessel, steel construction, and engineer machinery industry. Also suitable for the carbon steel, stainless steel ,aluminum alloy and other materials.
GBM-16C-R Plate Self-propelled Bevelling Machien Technical Parameters:
|
Power Supply:AC 380V 50Hz / 220V 50Hz
AC 480V 60Hz / 240V 60Hz
|
Power:2200W
|
|
Motor Speed:1400r/min
|
Bevel Speed:≥1.2m/min
|
|
Max. Bevel Width:28mm
|
Single Bevel Width:16mm
|
|
Bevel Angle:25°～45°(Adjustable)
|
Plate Thickness:9～40mm
|
|
Plate Width:115mm
|
Pipe Dia.:≥200mm
|
|
Net Weight:260kg
|
Gross Weight:300kg
|
GBM-16C-R Self-propelled Plate Bevelling Machine Features:
1. Small size, light and only 260kg;
2. Design rotation device, machine can complete the down side bevel;
3.Speed more than 2.0m/min, high efficiency;
4.Low labor intensity for automatic working;
5.Cold process, no non oxidation on the surface;
6. Low noise.

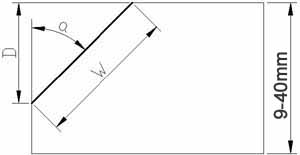

GBM-16C-R Plate Self-propelled Plate Bevelling Machine Complete Bevel Drawing:
GBM-16C-R Plate Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):
|
Tensile Strength
|
Carbon Steel Kg/㎡
|
Tensile Strength
|
Stainless SteelKg/㎡
|
|
40
|
50
|
60
|
50
|
60
|
70
|
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
a
|
W
|
D
|
W
|
, D
|
W
|
D
|
|
25°
|
16
|
14.5
|
13
|
11.5
|
10
|
9
|
25°
|
8
|
7
|
6
|
5.5
|
5
|
4.5
|
|
30°
|
16
|
14
|
13
|
11
|
10
|
8.5
|
30°
|
8
|
6.5
|
6
|
5.2
|
5
|
4.2
|
|
35°
|
16
|
13
|
13
|
10.5
|
10
|
8
|
35°
|
8
|
6
|
6
|
5
|
5
|
4
|
|
40°
|
16
|
12
|
13
|
9.5
|
10
|
7.5
|
40°
|
8
|
5.5
|
6
|
4.5
|
5
|
3.8
|
|
45°
|
16
|
11
|
13
|
9
|
10
|
7
|
45°
|
8
|
5
|
6
|
4
|
5
|
3.5
|
GBM-16C-R Plate Self-propelled Plate Bevelling Machin, Package Standard:

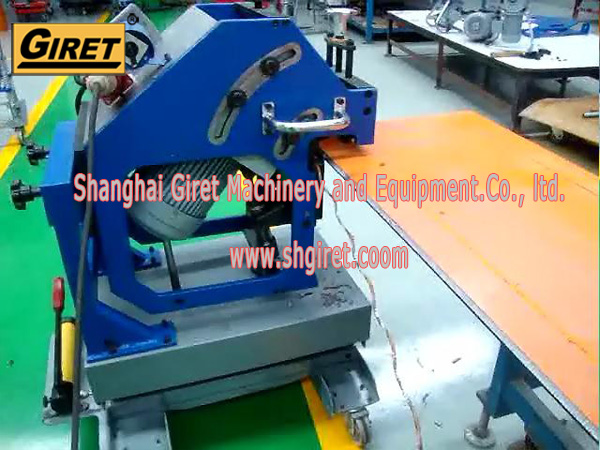

GBM-16C-R Plate Self-propelled Plate Bevelling Machine Processing Case.
