GBM-6C type auto plate bevelling machine
plate & pipe bevelling machine (include car)
Auto plate bevelling machine video Pls Click here
|
|
A lot of steel structure customers approved for GBM-6c plate bevelling processing steel h-beam weld bevel
GBM-6C plate & pipe bevelling machine processing H-beam steel case
2014 GBM-16C type self-propelled plate bevelling machine improve quality
2014 year GIRET manufacture product's performance is more stale.
GIRET is plate bevelling machine and edge milling machine factory has been plate bevelling machine & edge milling machine patent
Self-propelled bevelling machine & Edge milling machine to obtain patent
Self-propelled bevelling machine & Edge milling machine to obtain registered trademark
self-propelled plate bevelling machine & edge milling machine through the IS9001:2008 certification
Automatic plate groove machine assembly workshop, GIRET promises to provide high quality of the steel plate bevelling machine and the edge milling machine
GBM-6C (include car) plate & pipe bevelling machine's introductions:
This plate bevelling machine can be used as a plate for automatic rolling groove machine, portable groove machine, automatic pipe bevelling machine use is a multi-purpose steel plate groove machine, most slopes surface width can reach 8 mm, single slope width 6mm, groove 1600 mm/min speed, at the same level products. This steel plate groove machine is more than the GBM-6c is equipped with a car, make steel plate in the groove of beveling machine work location change of transport more convenient.
GBM-6C (include cae) plate & pipe bevelling machine used space:
Mainly used in sheet metal industry, h-beam, i-beam steel structure, large pipeline field construction, due to the automatic plate bevelling machine body more nimble easy to carry, so for mobile operations and customers of factory space is limited is a high ratio of steel plate bevelling equipment.
GBM-6C plate and pipe bevelling machine (include car) technical parameters:
|
Power Supply: AC380V 50Hz
|
Motor Power: 400W
|
|
Motor Speed: 1400r/min
|
Bevel width: 1200～1600mm/min
|
|
Max. bevel width: 8mm
|
Single Bevel Width: 6mm
|
|
Bevel Angle: 25°、30°、35°、45°
|
Process thickness: 4～16mm
|
|
Process Plate Width: ≥55mm
|
Pipe DIa: ≥Φ110mm
|
|
N.W.: 35kg
|
Pipe Line: ≥Φ300mm
|
GBM-6C plate and pipe bevelling machine (include car) features:
1. Small volume, light weight, simple structure, convenient operation;
2. Can be processed steel plates, circular pipe groove homework, is a multi-purpose steel plate groove machine;
3. Access to the national utility model patent certificate, self-service technology products;
4. GIRET independent brand products, steel plate bevelling machine more than 50% with china;
5. The largest processing slope width of 8 mm;
6. Groove fastest speed can reach 1600 mm/min.
7. Warranty period of one year, using the free maintenance reducer;

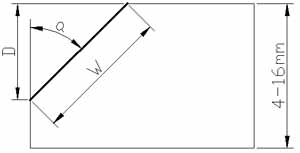

GBM-6C plate and pipe bevelling machine (include car) processing weld picture cad:
GGBM-6C plate and pipe bevelling machine (include car) process table：
|
Tensile strength
|
carbon steel (kg/m3)
|
Tensile strength
|
Stainless steel (kg/m3)
|
|
40
|
50
|
60
|
50
|
60
|
70
|
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
a
|
W
|
D
|
W
|
D
|
W
|
S
|
|
25°
|
6
|
5.5
|
5
|
4.5
|
4
|
3.5
|
25°
|
3
|
2.5
|
2.5
|
2
|
2
|
1.5
|
|
30°
|
6
|
5
|
5
|
4.5
|
4
|
3.5
|
30°
|
3
|
2.5
|
2.5
|
2
|
2
|
1.5
|
|
35°
|
6
|
5
|
5
|
4
|
4
|
3
|
35°
|
3
|
2.5
|
2.5
|
2
|
2
|
1.5
|
|
37.5°
|
6
|
4.5
|
5
|
4
|
4
|
3
|
37.5°
|
3
|
2
|
2.5
|
2
|
2
|
1.5
|
|
45°
|
6
|
4
|
5
|
3.5
|
4
|
3
|
45°
|
3
|
2
|
2.5
|
1.5
|
2
|
1.5
|
GGBM-6C plate and pipe bevelling machine (include car) package list：
|
|
|
|
|
plate bevelling machine cutter
|
tools
|
wrench
|
wrench
|
|
|
|
|
|
carry cutter
|
Operation manual
|
product manual
|
product certificate
|
GGBM-6C plate and pipe bevelling machine (include car) processing case:
This plate bevelling machine can be used processing pipe, stainless steel, carbon steel.
The old type machine GBM-6 plate bevelling machine and new GBM-6C type auto plate bevelling machine picture.
