2014 GBM-6C Plae bevelling machine_SHANGHAI GIRET MACHINERY EQUIPMENT CO.,LTD

GIRET Self-propelled plate bevelling machine & Edge milling machine manufacture factory

2014 year new GBM-6C self-propelled plate & pipe bevelling machine
This is a new automatic groove machine

The Plate beveling Machine's Video Click

The automatic plate groove machine product in shipyard and pressure vessel container factory test, have large quantities of groove

2014 new GBM-6C automatic plate bevelling machine has been ready, ready for sales in 2014. the automatic plate groove machine is also a cross steel pipe and steel plate bevelling machine.

Self-propelled bevelling machine & Edge milling machine to obtain patent
Self-propelled bevelling machine & Edge milling machine to obtain registered trademark
self-propelled plate bevelling machine & edge milling machine through the IS9001:2008 certification

Self-propelled plate bevelling machine workshop in bevelling machine manufacturing factory GIRET

About of 2014 new GBM-6C self-propelled plate bevelling machine:
The GBM-6C is a new steel pipe amphibious bevelling machine, inherited the original 2013 model efficient bevelling homework, no oxidation bevelling surface machining and mechanical loss compared with the worm gear and worm reduction, can processing steel plate and pipe of amphibious bevelling devices. New steel plate bevelling machine adopts a more effective reducer, motor, life-long free maintenance gearbox allows users to use more at ease.

GIRET is a professional plate bevelling machine & edge milling machine, Our goal is to become the world's first plate bevelling & edge milling machine supplier.

2014 new GBM-6C self-propelled plate bevelling machine process space:
The GBM - 6 - c is a new steel pipe amphibious bevelling machine, inherited the original 2013 model efficient bevelling homework, no oxidation bevelling surface machining and mechanical loss compared with the worm gear and worm reduction, can processing steel plate and pipe of amphibious bevelling devices. New steel plate bevelling machine adopts a more effective reducer, motor, life-long free maintenance gearbox allows users to use more at ease.

2014 GBM-6C portable Self-propelled plate bevelling machine feature:
1. The high efficient gear transmission, 50% higher than that of similar products;
2. Lifelong free maintenance gear box, make steel plate groove homework more rest assured use;
3. The design structure is compact; the weight is only 33 kg;
4. The processing speed of groove to be 1600 mm/min.
5. Patent products, leather production to obtain the very good continuous improvement;
6. Cold cutting bevel, bevel surface oxidation, without pickling.

2014 GBM-6C portable automatic plate bevelling machine technical parameters：

Power Supply: AC380V 50Hz Total Power400W

Bevel Angle: 25°，30°，37.5°，45° Single bevel width: 6mm

Bevel Speed: 1600mm/min Max. bevel: 8mm

Processing Plate width: >55mm Plate Thickness: 4-16mm

Processing plate legth: >55mm N.W.: 33kg

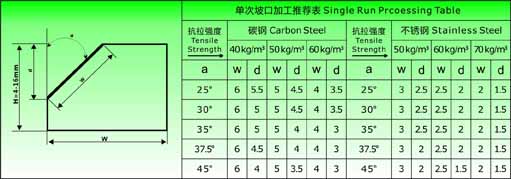

2014 GBM-6C Portable auto plate & pipe bevelling machine a single processing bevelling table:

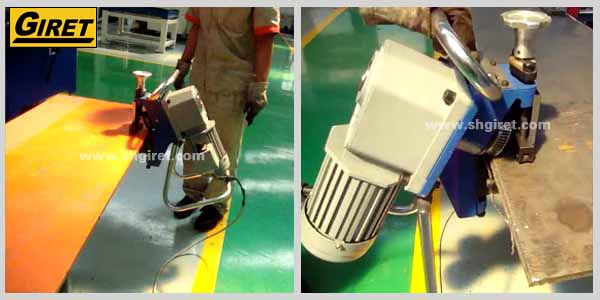

2014 GBM-6C Portable automatic plate bevelling machine processing plate bevel case:

2014 GBM-6c steel pipe dual-purpose groove machine can processing pipes and steel plate groove, above, processing pipeline and the instance of the stainless steel groove

2014 all-new GBM - 6c type portable steel plate can be automatic plate bevel, bevelling machine is a portable plate groove machine.
