Senior customers commend GMMA-2A5 Self-propelled edge milling machine
2014 edge milling machine quality improve again; choose high quality power supply for steel plate edge milling machine work horsepower strong gluten
2014 automatic plate edge milling machine milling performance products more secure, edge milling finish Ra6.3 - easily reach 3.2
2014 automatic plate edge milling machine to make our patented product, to ensure the source of our continuous improvement of product technology
2014 new GMMA-25A type automatic plate edge milling machine is a automatic can walk edge milling machine milling wireless length of steel plate, solved the limitations of desktop edge milling machine and cost higher defect. At the beginning of the shipyard more customers use our self-propelled edge milling machine products.
A steel structure factory production workshop GMMA-25A type automatic plate edge milling machining field, one of the workers can operation of edge milling machine. Customers for 2014 edge milling machine prototype problems we have to improve, to provide customers with more quality of plate edge milling machine and make our purpose of beveling machine.

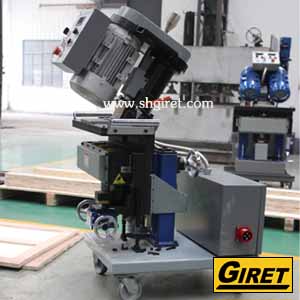

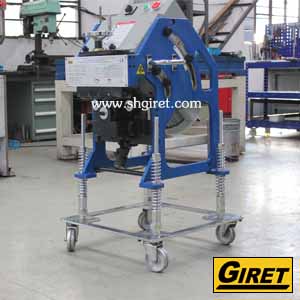

2014 GMMA-25A Plate edge milling machine introduction:
This machine on the basis of 2013year edge milling machine increased the feed driving force, make steel plate edge milling machining of steel increase muscle. Groove Angle of plate edge milling machine are as follows: 10 ° to 60 °, and milling surface of slope width: 45 mm, clamping plate thickness: 8-60 mm. Cold milling groove, processing out of the groove surface roughness can reach Ra3.2-6.3.
GIRET brand is a professional manufacturer of steel plate groove machine and the edge milling machine, used in the Shanghai GIRET groove machine and we are goal is: the world's first auto edge milling machine & bevelling machine suppliers.

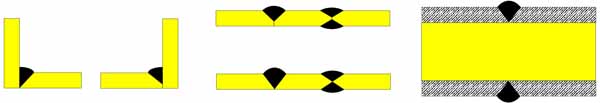

2014 GMMA-25A Self-propelled plate edge milling machine used space:
The edge milling machine is processing plate welding groove homework machine, CNC milling machine can be used for shipyards, steel structure plant, bridge construction, aerospace, pressure container factory, engineering machinery, and the export contract of assignment (in Hebei of china province is engaged in the export of OEM customers chose our edge milling machine products, foreign customers have been approved, can be directly processed groove surface spray paint used as product appearance). 2014 GMMA-25A type CNC milling machine can process carbon steel, stainless steel groove, aluminum groove, etc.
Note: the edge milling machining line need the pipe before circle tube processing.
2014 GMMA-25A Plate edge milling machine technical parameters:
|
Power Supply:AC380V 50Hz
|
Total Power:4800W
|
|
Milling Speed:0～1500mm/min (Adjustable)
|
Spindle Speed:600～1050r/min (Adjustable)
|
|
Milling Angle:10°～60°
|
Milling Depth:32mm
|
|
Bevel Width:46mm
|
Single Milling Width:13mm
|
|
Processing Plate Thickness:8～60mm
|
Min Plate Width: 70mm
|
|
Net Weight:300kg
|
G.w:400kg
|

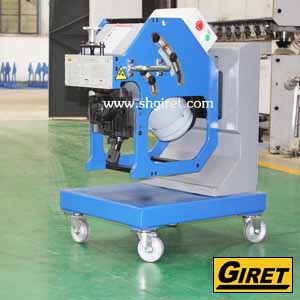

2014 GMMA-25A Plate edge milling machine factures:
1. Processing plate thickness increases, suitable for thick plate bevel/groove/edge milling operations;;
2. The free edge milling Angle adjusting range is larger;
3. The cutting speed can be infinitely adjustable-speed, making the edge milling machine is processing materials range is increased;
4. The interface is simple, no need professional operation;
5. Products have passed CE certification, can be at ease use.

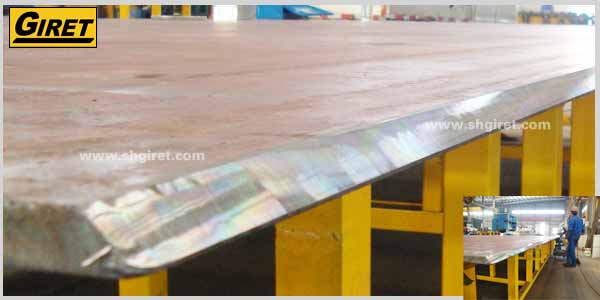

2014 new GMMA-25A plate edge milling machine processing plate case:

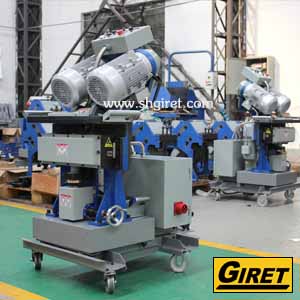

New GMMA-25A type CNC auto edge milling machine is a structure optimization, the machine can processing plate welding groove is more stable. Our edge milling machine products have entered the link of continuous improvement, to bring customers more efficient edge milling machine products is our aim.

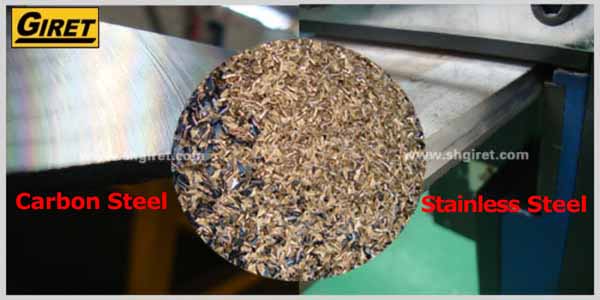

2014 CNC steel stainless steel bevel edge milling machine can processing, edge milling effect as shown. When you choose GMMA - 25 type CNC milling machine, when groove, please choose stainless steel special milling blade.

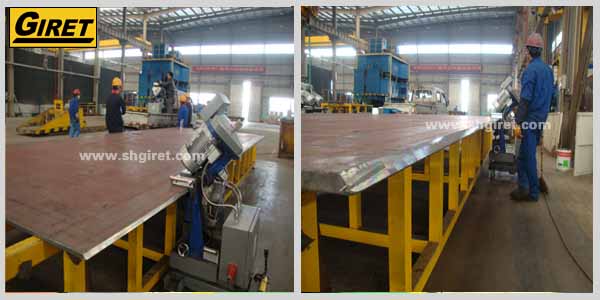

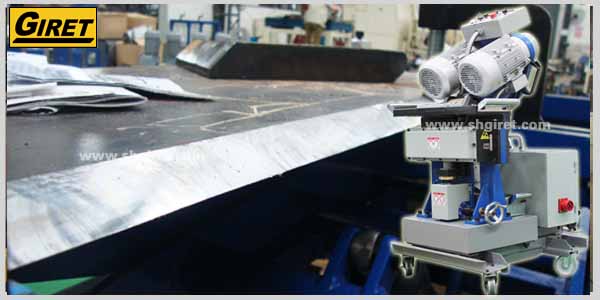

2014 GMMA-25A type automatic CNC edge milling machine processing steel plate bevel surface pictures in customers place, the cnc edge milling machine is the product of simple operation, reduces the use cost, and the edge milling machine for automatic walking type portable type, cover an area of an area small type of Q235B carbon steel plate (the picture).

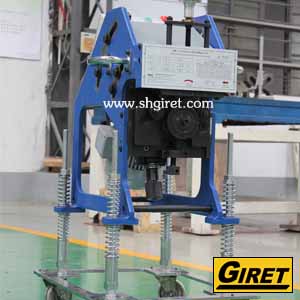

GIRET plate for automatic groove machine and CNC automatic edge milling machine product safety labeling resolution:
Note: you are in operation bevelling machine or edge milling machine , please read the operation manual before and pay attention to the relevant identification devices prompt, as our factory passed the USA aqa ISO9001:2008 certification and the European Union CE certification, all logo are in line with international standards, allowing you to work more safe is GIRET commitment.
Steel plate edge milling machine feeding direction will remind you when feed here is in danger of task of fingers
Auto plate edge milling machining steel plate groove exists in the process of the injured finger iron pin, in the corresponding position with indicator.
Steel sheet is edge milling machine milling groove operation, in order to prevent the iron in the process of milling machining pin fly sword, the protect
Self-propelled Edge milling machine cutter head for high-speed cold cutting groove operation equipment, the knife dish in the high temperature, the high temperature of the knife dish can make as iron pin temperature is very high, high temperature scald danger please do not touch.
When you need lifting plate for CNC automatic edge milling machine goods groove machine products please don't stand at the bottom of the equipment, and keep the distance with edge milling machine, in order to avoid collision.

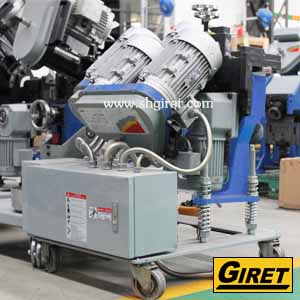

Please pay attention to the places where have the logo for the risk of electric shock, we in the steel plate edge milling machine and groove machine this warning labels on products. Before you open the distribution box and control box, please cut off power supply to prevent electric shock.
2014 New bevelling & edge milling machine
GIRET New product enjoy
GBM-6C type plate & pipe bevelling multi-purpose
2014 year GBM 6-C type multipurpose plate & pipe machine, the bevelling machine can be processing H section steel, i-steel, channel steel and other steel structure and pressure vessel tube groove. Are portable plate groove machine is more suitable for field construction work.
GBM-12C Self-propelled plate bevelling machine
2014 Year New GBM-12 c type self-propelled steel plate bevelling machine is cost-effective plate bevelling machine, received the general customers the high praise.
GBM-12C-R type self-propelled plate bevelling machine
2In 2014 we launched a new transition plate bevelling machine GBM-12C-R, this steel plate groove welding machine belongs to X portable groove machine
GBM-16C Type self-propelled pllate bevelling machine
2014 GIRET will GBM-16-C heavy steel plate bevelling machine torque increase 100%, and its processing welding groove is more stable, increase service life. Our steel plate groove machine and the edge milling machine products has entered into a state of continuous improvement.
GMMA-25A-S Type Auto Plate Edge Milling Machine
GIRET in 2014 launched a new GMMA-25A-S type automatic steel plate edge milling machine, the GMM series steel plate edge milling machine series process step, is cost-effective plate edge milling machine.
GMMA-25A-U Type Automatic plate downhill mouth edge milling machine
This is a with GMMA-25A type edge milling machine combination processing steel plate X downhill mouth homework edge milling machine, the edge milling machine, reduce the labor intensity of the workers can behind the GMMA-25A edge milling machine processing steel plate downhill mouth to complete assignments X groove of steel plate.
GMMA-25A Type auto plate edge milling machine
2014 GMMA-25A type Self-propelled plate edge milling machine structure optimized operation more simple, our products have passed the European CE certification, the workers operation more secure.
More plate automatic edge milling machine can print：
