The GBM-12C Self-propelled Plate Bevelling Machine Instroduction:
This machine is the improvement of the GBM-12B-type Bevelling Machine, be described as the Self-propelled Plate Bevelling machine, Plate Chamfering Machine, and Portable Plate Bevelling Machine. The new speed reduction technology has been used in the machine to make it steadier.
GBM-12C Plate Self-propelled Plate Bevelling Machine Use of Scope:
It is widely used in pressure vessel factory, steel factory, construction machinery, aerospace, mining equipment production, petrochemical industry.
GBM-12C Plate Self-propelled Bevelling Machien Technical Parameters:
|
Power supply:AC 380V / 220V 50Hz
AC 480V / 240V 60Hz
|
Power:1500W
|
|
Motor Speed:1400r/min
|
Bevel Speed:≥1.5m/min
|
|
Max. Bevel Width:18mm
|
Single Bevel Width:12mm
|
|
Bevel Angle:25° ~ 45°(Adjustable)
|
Plate Thickness:6-30mm
|
|
Plate Width:≥75mm
|
Pipe Dia.:≥110mm
|
|
Net Weight:175kg
|
|
GBM-12C Self-propelled Plate Bevelling Machine Features:
1. Use the high quality gear reducer and motor, and lower noise;
2. Complete the work automatically;
3. Bevel angle variety, can adjust between 25°to45°freely;
4. No decarburization phenomenon, can welding directly;
5. Install trolley to reduce the shake;
6. Max. single bevel width arrive 12mm, 18mm can be gotten by several times;
7. Processing speed bigger than 1.5m/min, and save the time greatly;
8. Totally automatic propel bevelling machine, low labor cost and intensity;
9. Export wooden packaging, regular transport to make machine intact.;
10.Independent research and development, low maintenance cost.
GBM-12C Plate Self-propelled Plate Bevelling Machine Complete Bevel Drawing:
GBM-12C Plate Self-propelled Plate Bevelling Machine Processing Data Table (Single Run Bevelling Table):
|
Tensile Strength
|
Carbon Steel Kg/㎡
|
Tensile Strength
|
Stainless Steel Kg/㎡
|
|
40
|
50
|
60
|
50
|
60
|
70
|
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
a
|
W
|
D
|
W
|
D
|
W
|
D
|
|
25°
|
12
|
11
|
10
|
9
|
8
|
7.5
|
25°
|
6
|
5.5
|
5
|
4.5
|
4
|
3.7
|
|
30°
|
12
|
10
|
10
|
8.5
|
8
|
7
|
30°
|
6
|
5.2
|
5
|
4.2
|
4
|
3.5
|
|
35°
|
12
|
9.5
|
10
|
8
|
8
|
6.5
|
35°
|
6
|
5
|
5
|
4
|
4
|
3
|
|
40°
|
12
|
9
|
10
|
7.5
|
8
|
6
|
40°
|
6
|
4.5
|
5
|
3.8
|
4
|
3
|
|
45°
|
12
|
8.5
|
10
|
7
|
8
|
5.5
|
45°
|
6
|
4
|
5
|
3.5
|
4
|
3
|
GBM-12C Plate Self-propelled Plate Bevelling Machine Package Standard:
|
|
|
|
|
|
Bevel Cutter
|
Tear Down Cutter
|
,
Hex Wrench
|
Hole Wrench
|
|
|
|
|
|
|
Open End Wrench
|
certificate
|
Operation Manual
|
Products Manual
|

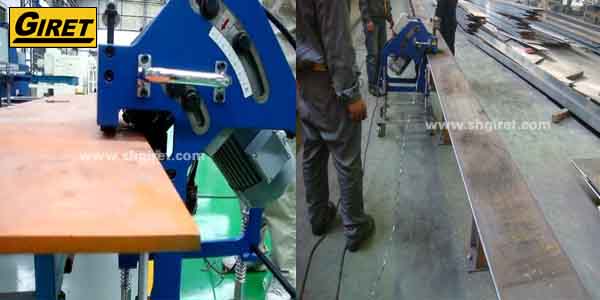

GBM-12C Plate Self-propelled Plate Bevelling Machine Processing
The GBM-12C can be process stainless steel & carbon steel
GBM-12C plate bevelling machine process plate steel case
