GMMA-25A Auto Plate Edge Milling Machine
The machine video Click
|
|
|
Passed USA AQA certification
|
Quality management system ISO 9001:2008
|
The GMMA-25A type Self-propelled edge Milling Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.
The GMMA-25A type Edge milling machine:
1. Machine parts：Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. Electrical parts: Use 〝Schneider"〝〝 OMRON〞〝 YASKAWA〞;
4. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.
GMMA-25A Auto Plate Edge Milling Machine Introduction：
This type machine is one Automatic Milling Machine, which can obtain high quality effect. The bevel angle can be adjusted arbitrarily from 20 degree to 60 degree.
GMMA-25A Auto Plate Edge Milling Machine Use Scope:
This type Milling Machine can process Carbon steel, Stainless steel, and aluminum alloy automatically.
GMMA-25A type Plate Edge Milling Machine Technical Parameters:
|
Power supply: AC 380V 50Hz
|
|
Motor power: 4800W
|
|
Cutting motor speed: 1400r/min
|
|
Feeding motor speed: 1450r/min
|
|
Milling speed:500~850mm/min
|
|
Spindle speed: Can adjust by the gear
|
|
Max. milling width:38mm
|
|
Single milling width:13mm
|
|
Milling angle:20°~60°(Adjustable)
|
|
Processing plate thickness: 8-50mm
|
|
Min. processing plate width: 55mm
|
|
N.W.:295kg
|

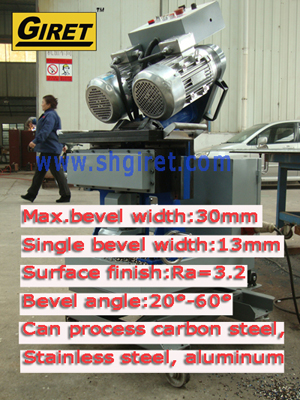

GMMA-25A type Automatic Plate Edge Milling Machine:
1.Adjustable for the feed speed;
2.Adjustbble for the milling speed;
3.Digital display for the feed speed;
4.Digital display for the milling speed;
5.Cold milling,Non-oxidation on the surface;
6.Max.Edge milling width:30mm;
7.High efficiency edge milling:500~850mm/min;
8.Mill angle can be adjusted from 20 degree to 60 degree.
GMMA-25A type Automatic Plate Edge Milling Machine Process the Plate Diagram:
GMMA-25A type Automatic Edge Milling Machine Process the plate:
GMMA-25A Auto Edge Milling Machine bevelling & milling the plate

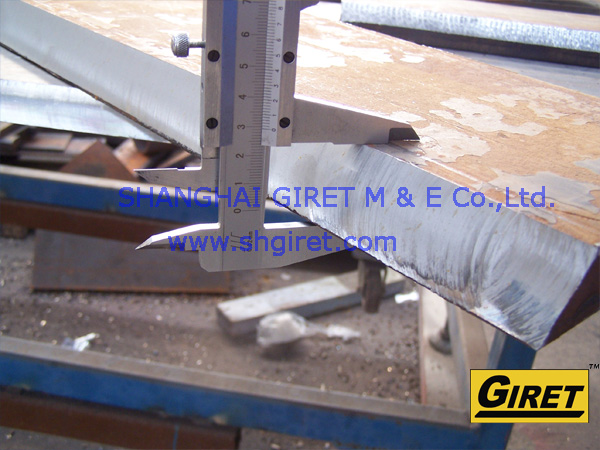

The GMMA-25A edge milling machine can pocessing plate thickness: 60mm, picture:29mm

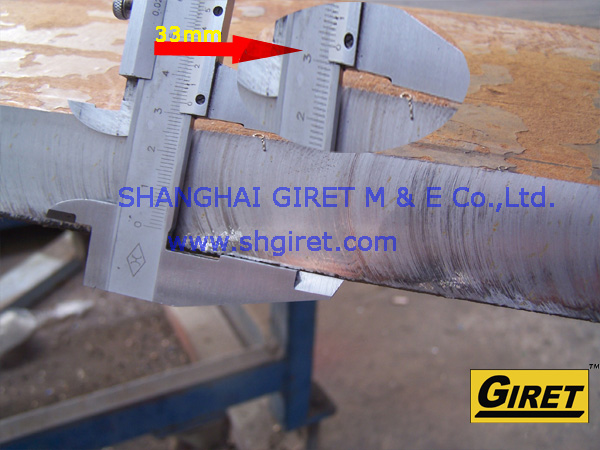

GMMA-25 ege milling machine processing plate 33mm bevel width
