Case No.8

Date ：2024/11/13 13:20:00 Times ：1811 Source：SHANGHAI GIRET MACHINERY EQUIPMENT CO.,LTD

The Chamfering Machine processing arc example

The GCM-M1 chamfering machine is a pneumatic explosion-proof type, it can process the straight, circular and curve side steel. The following are the photos:

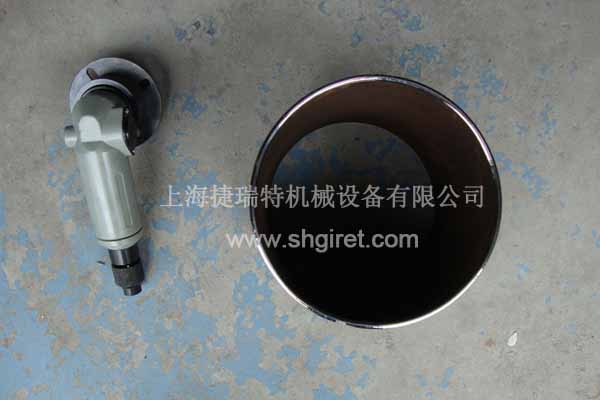

Picture 1: The chamfering machine is processing the arc-shaped pipe

Picture 2: The arc pipe inside and outside chamfering

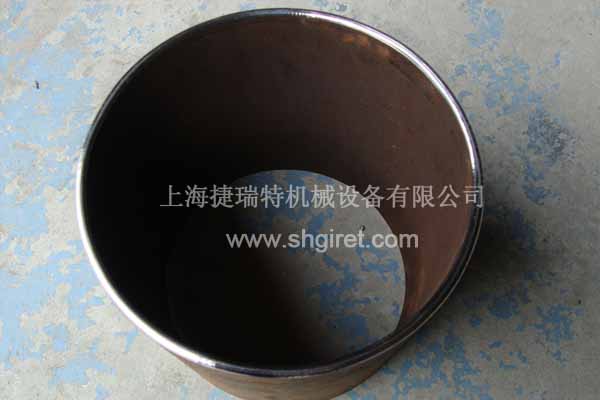

Picture 3: The arc chamfering has been completed

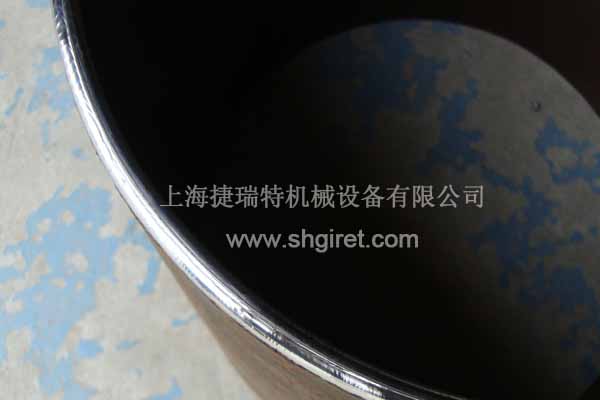

Picture 4: The effect of the enlarged arc groove

We should handle the chamfering machine tightly when use the pneumatic chamfering machine, and must make sure that the guide close to the side surface of the tube or pipe. If it is a shape curve board must let the chamfering machine touch the plane.
